Why Is My Dometic DM2672 Door Not Sealing Properly?
A door that fails to seal on a Dometic DM2672 refrigerator often leads to temperature inconsistencies, frost buildup, and even spoiled food. While a deteriorated gasket can be the culprit, more often than not, the issue stems from misaligned hinges. Over time, road vibration and normal use can cause the door to sag, creating gaps that prevent the magnetic seal from contacting the cabinet evenly. Fixing hinge alignment is a straightforward repair that restores the door’s perfect seal and improves cooling efficiency.
Before replacing the gasket, always check hinge alignment first. A simple adjustment can save you the cost and effort of a full seal replacement. If you’ve already ruled out the hinges, see our Dometic DM2672 Door Seal Replacement: Step-by-Step Guide for gasket change details.
How Do I Know If the Hinge Alignment Is the Problem?
Identifying hinge misalignment is simple with a visual and tactile inspection. Common signs include:
- The door does not close flush against the cabinet; one corner stands proud.
- A noticeable gap exists between the door gasket and the refrigerator body when closed.
- The door latch requires extra force or does not engage smoothly.
- Condensation or ice forms inside along the door opening.
- The door sags downward when open, especially after months of travel.
To confirm, perform a “paper test.” Place a piece of paper between the gasket and the cabinet at each corner, then close the door. If the paper pulls out easily from any corner, the seal is compromised. This test can isolate which hinge needs adjustment—top, bottom, or both.
What Tools and Parts Are Needed for the Fix?
Adjusting the hinges on a Dometic DM2672 requires minimal tools. Most adjustments can be made with a standard Phillips-head screwdriver and a hex key (usually 4mm or 5mm). You’ll also need a level to ensure the door is plumb. Here’s a quick reference table:
| Purpose | Approx. Cost (USD) | |
| Phillips-head screwdriver (#2) | Loosening hinge screws | $5–$15 (if not owned) |
| Hex key set (4mm or 5mm) | Adjusting hinge pivot pins | $8–$20 (set) |
| Carpenter’s level (small) | Checking door alignment | $10–$25 |
| Thread-locking compound (optional) | Securing screws to prevent loosening | $6–$12 |
| Replacement hinge (if damaged) | Worn or bent hinge requires swap | $30–$60 per hinge |
How Do I Adjust the Top Hinge for Vertical Alignment?
Vertical alignment (up-down) is corrected at the hinge plate. Follow these steps:
- Disconnect power to the refrigerator for safety. Turn off the fridge and unplug it from the 12V or 120V source.
- Locate the top hinge on the door side. It typically has two or three screws holding the hinge plate to the cabinet.
- Loosen the screws about half a turn—do not remove them completely. This allows the hinge plate to slide slightly.
- Adjust the door height by gently lifting or lowering the door while holding the hinge. A helper can be useful. Aim for a 1/8-inch gap between the gasket and cabinet at the top and bottom.
- Tighten the screws once alignment looks even. Check with the level.
- Test the seal using the paper test. If the gap persists, proceed to the bottom hinge.
If the door still sags, check the Dometic DM2672 Door Hinge Alignment: Fixing Sagging and Leaks guide for in-depth shimming techniques.
How Do I Adjust the Bottom Hinge for Horizontal Alignment

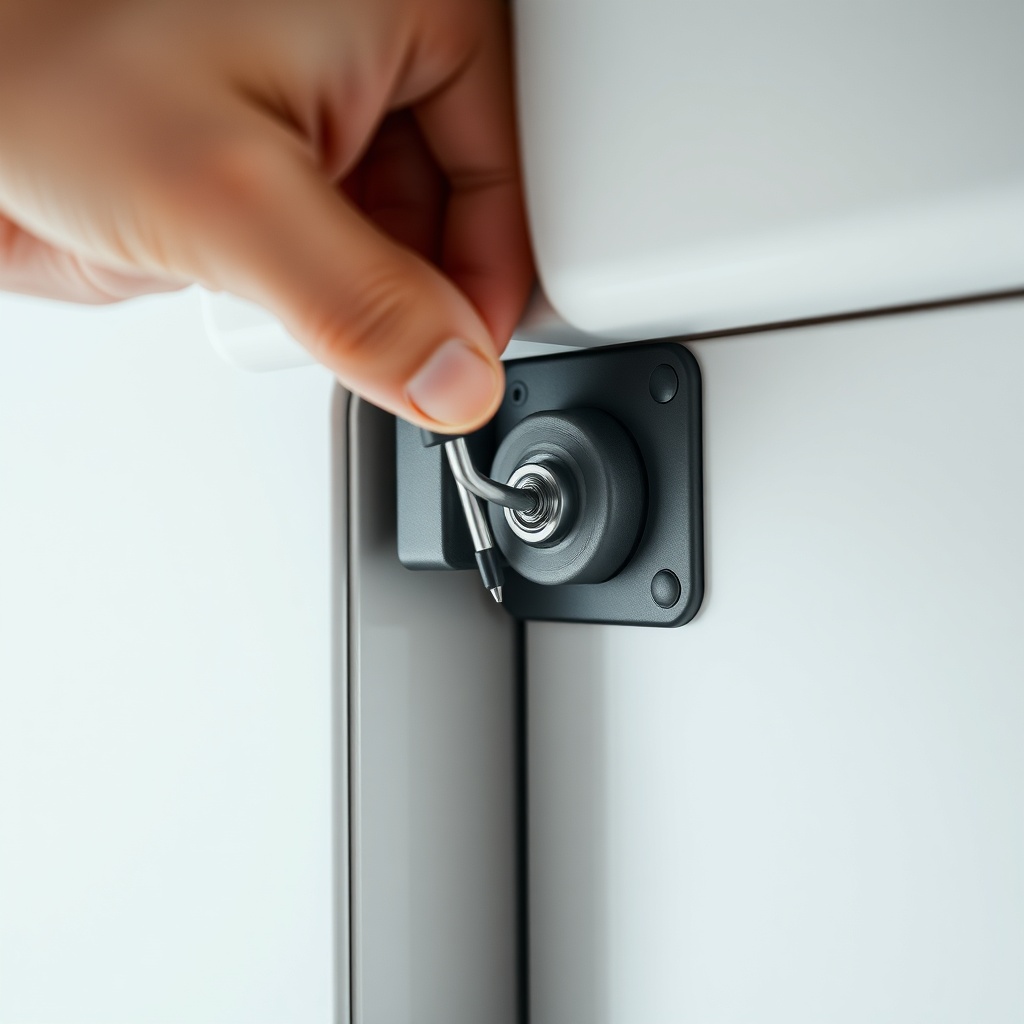

Horizontal alignment (side-to-side or gaps on the latch side) involves the bottom hinge’s pivot pin. This adjustment moves the door closer to or further from the cabinet face.
- Remove the trim cap covering the bottom hinge pivot. It pops off with a flat-head screwdriver.
- Loosen the pivot pin set screw using the hex key. This pin controls the door’s swing arc.
- Turn the pivot pin clockwise to pull the door inward (tighter seal) or counterclockwise to push it outward. A full turn changes the gap by roughly 1/16 inch.
- Tighten the set screw and replace the trim cap.
- Check the latch: It should engage with a firm click, not a struggle. If it’s too tight, back the pin off slightly.
For persistent latch issues after alignment, the Dometic DM2672 Door Latch Replacement: Easy Step-by-Step Guide may be needed if the latch itself is worn.
What If the Door Still Leaks After Adjustment
If you’ve adjusted both hinges and the door still fails the paper test, inspect the gasket for compression marks or cracks. A gasket that has taken a permanent set (loss of foam memory) won’t seal even with perfect hinge alignment. In this case, replace the gasket. Our companion article Dometic DM2672 Door Seal Replacement: Step-by-Step Guide covers the full procedure.
Also, check the door latch itself. A worn latch can prevent the door from pulling tight against the cabinet even when hinges are correct. The latch mechanism may have stretched or lost its spring tension. For this, refer to Dometic DM2672 Door Latch Replacement: Easy Step-by-Step Guide.
What Owners Say About This Fix
RV owners have reported high success rates with hinge adjustments on the Dometic DM2672. Common feedback includes:
- “Saved $200 on a service call.” Many owners fixed the issue in under 20 minutes with a screwdriver and hex key.
- “The paper test was a revelation.” Owners appreciate the simplicity of diagnosing gaps before diving into repairs.
- “My fridge now holds 38°F perfectly after adjusting the top hinge.” Proper alignment directly improves cooling performance.
- “Watch the pivot pin—overtighten can crack the hinge.” Experienced owners caution against forcing adjustments beyond factory limits.
- “Corrosion on hinge screws was a surprise in my 2019 rig.” Using thread-locking compound prevents future loosening from vibration.
If temperature issues persist even after a good seal, check Dometic DM2672 Thermistor Calibration: How to Fix Temperature Issues for further diagnosis.
Frequently Asked Questions
How often should I check hinge alignment on my Dometic DM2672?
Check alignment after every long trip or annually. Road vibration is the primary cause of misalignment.
Can I use grease on hinge pins?
Use a silicone-based lubricant sparingly. Petroleum-based greases can attract dust and cause binding.
Will adjusting hinges void my warranty?
No, hinge adjustment is considered normal maintenance. Damage from overtightened bolts may not be covered.
What if the hinge itself is bent?
A bent hinge must be replaced—do not attempt to straighten it, as this compromises strength. Order genuine Dometic parts.
Does a misaligned door affect cooling efficiency?
Yes, even a 1/8-inch gap forces the compressor to run longer, increasing energy consumption by up to 20% in some cases.
Why does my door drop after a few months of use?
Hinge screws can loosen from vibration. Apply thread-locking compound to all hinge screws after adjustment to prevent recurrence.
