Why Is the Door Latch on My Dometic DM2672 So Important?
The Dometic DM2672 is a three-way absorption refrigerator common in many touring caravans and motorhomes. It operates on 230V mains, 12V battery, or gas, and its door latch is the unsung hero of a trouble-free camping trip. When the latch fails, the door may pop open during travel, wasting energy, causing temperature spikes, and potentially spilling food.
This guide provides a complete step-by-step walkthrough for replacing the door latch on a Dometic DM2672, bringing a refrigerator back to reliable operation. Note that the latch is part of an assembly that interacts with the door seal, so always inspect the seal condition during the job. For more on that, see our complete Dometic DM2672 Door Seal Replacement: Step-by-Step Guide.
What Tools and Parts Do I Need for the Latch Replacement?

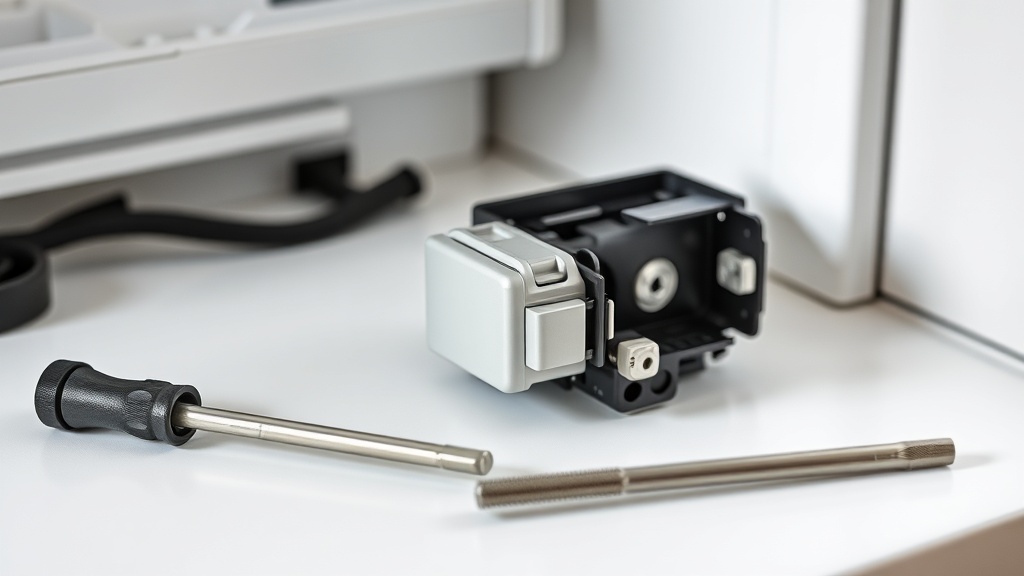

Before starting this repair, gather the correct replacement latch and the necessary tools. The Dometic DM2672 uses a specific latch assembly (often sold as part number 241438872 or a universal DM2672 latch kit). Here is a quick reference:
| Item | Typical Cost (GBP) | Notes |
|---|---|---|
| Dometic DM2672 latch replacement kit | £18 – £35 | Includes spring, catch plate, and screws |
| Phillips-head screwdriver (#2) | £5 – £12 | Magnetic tip helps prevent dropped screws |
| Small flat-blade screwdriver | £4 – £9 | For gently prying off trim pieces |
| Torx T20 bit (optional) | £6 – £15 | Some newer DM2672 models use Torx screws |
Do not substitute generic hardware-store latches. The Dometic assembly has a specific spring tension and cam profile to ensure a tight door seal. A poorly matched part can lead to Dometic DM2672 Temperature Fluctuations: Causes and Fixes due to lost cooling.
How Do I Remove the Old Door Latch Safely?
Switching off the refrigerator is not strictly required for the latch, but it avoids the risk of knocking the gas valve or 12V wiring. Follow these steps:

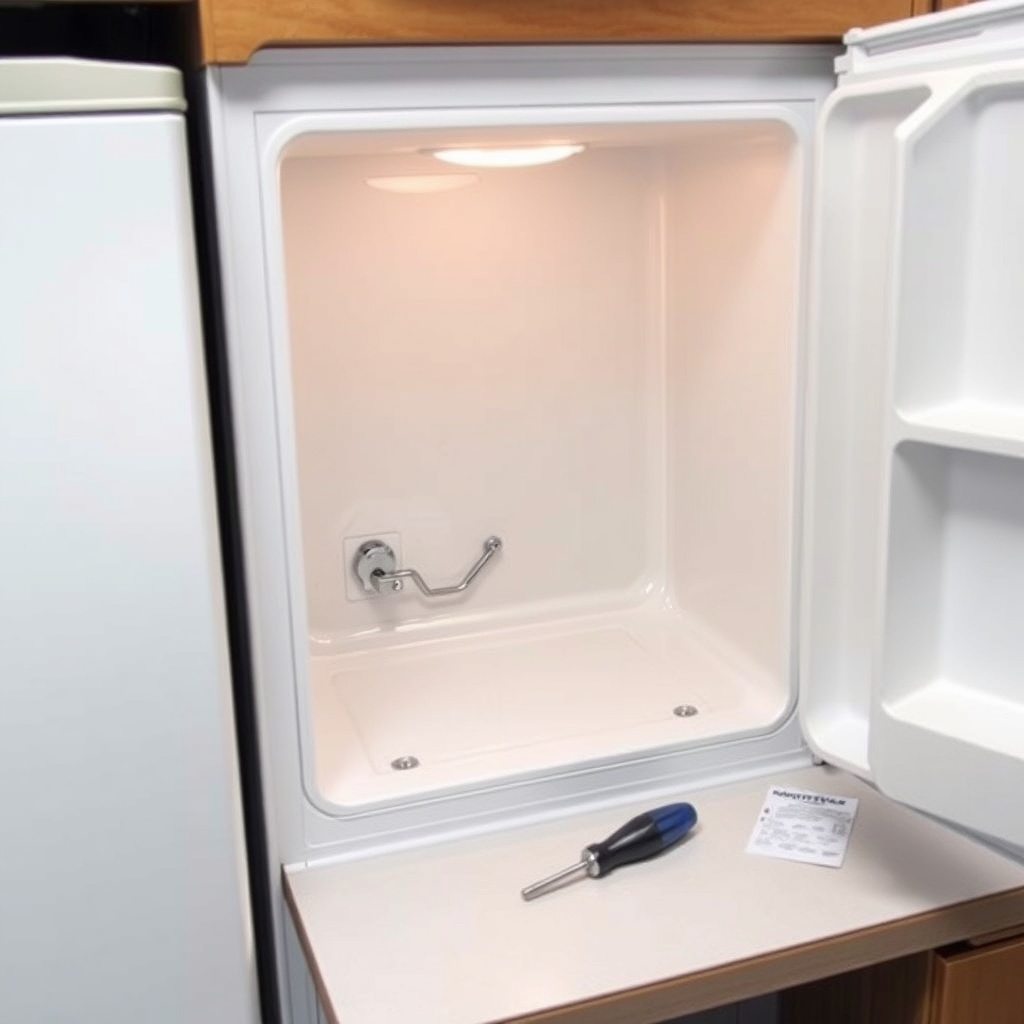

- Locate the latch assembly. On the DM2672, the latch is typically on the top or side of the door frame. It consists of a plastic body with a spring-loaded catch and a striker plate on the fridge body.
- Remove the door. The easiest way to access both halves of the latch is to take the door off. Open the door fully and lift it upwards from the hinge pins (usually a 90° lift-off design). Place the door on a soft cloth.
- Unscrew the old latch. Using the Phillips-head screwdriver, remove the two or three screws holding the latch body to the door. Also remove the striker plate screws from the fridge frame. Keep the old screws in a container; the new kit often comes with fresh screws.
- Inspect the mounting area. Check for cracks in the plastic door liner around the screw holes. Hairline cracks are common on older DM2672s and can be reinforced with a small plastic weld or epoxy before installing the new latch.
Never force the latch off. If it is stuck due to old adhesive or gasket material, use the flat-blade screwdriver to gently separate the parts. Damaging the door surface can create further sealing issues.
How Do I Install the New Latch on the Dometic DM2672?
Installation is the reverse of removal, but pay close attention to alignment:

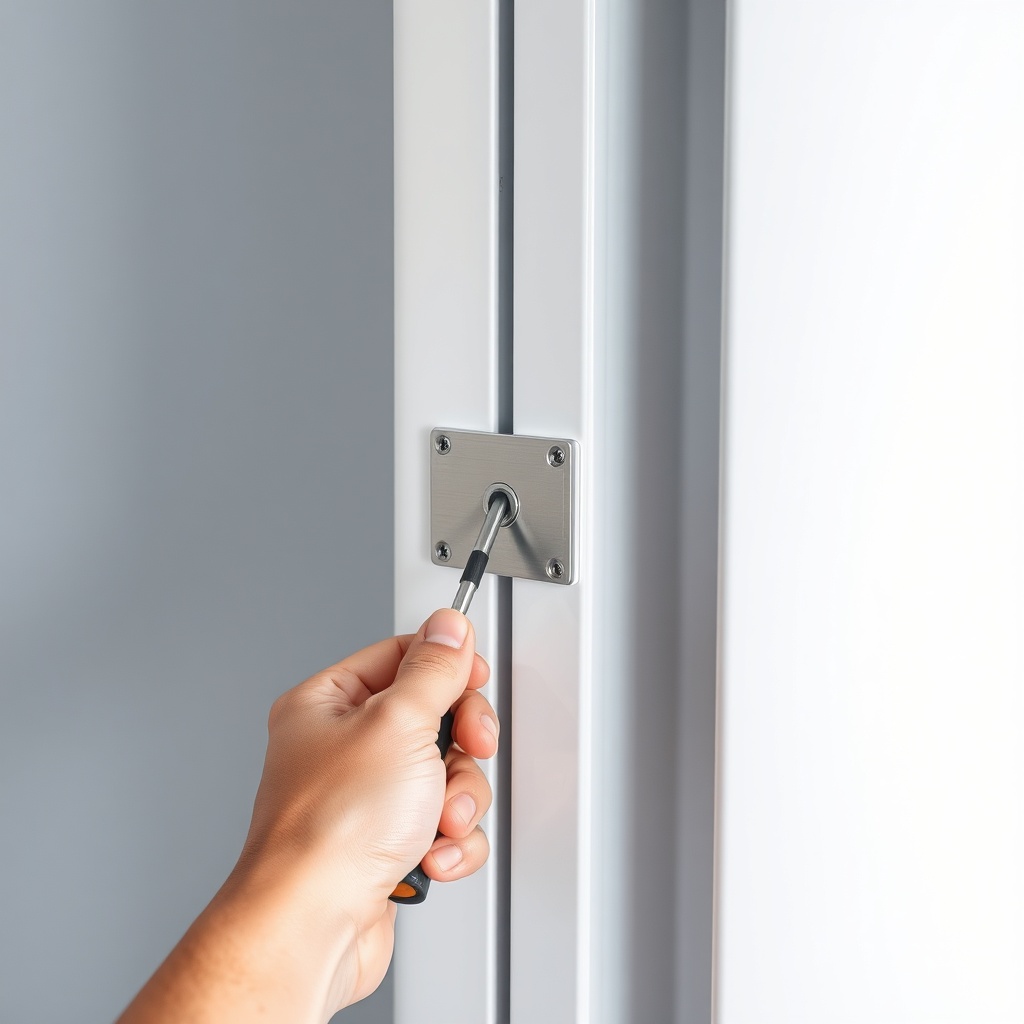

- Mount the striker plate first. This plate goes on the refrigerator cabinet. Screw it loosely into the existing holes, do not fully tighten yet.
- Attach the latch body to the door. Fit the new latch onto the door, ensuring the spring is oriented correctly (the hook should face the striker). Tighten the screws firmly but not overtight—plastic threads can strip.
- Align the door and striker. Place the door back onto the hinges. Gently close it and check if the latch catches smoothly. The door should compress the seal evenly all around. If it is too tight or too loose, loosen the striker plate screws, shift the plate slightly up/down or left/right, then retighten and test again.
- Test the opening force. The DM2672’s latch should require a firm push to close but should not be so stiff that the handle feels about to break. If the spring is too weak, a separate spring can be replaced, but a complete kit eliminates that problem.
Proper latch alignment is crucial for energy efficiency. A misaligned latch allows air exchange, making the fridge work harder. Read our Dometic DM2672 Energy Efficiency Tips: Save Power While Camping for further optimisation.
What Owners Say About the DM2672 Latch Replacement
Experienced RVers on UK caravan forums widely report that the Dometic DM2672 latch is a common weak point. Many owners note that the original plastic latch becomes brittle after three to five years of UV exposure. After replacement, they see a dramatic improvement in door seal tightness and a reduction in interior frost buildup.
A typical comment from a long-term owner: “The latch on my 2019 Dometic DM2672 started to pop open on rough roads. Replacing the whole latch assembly with the OEM kit cost about £25 and took twenty minutes. My fridge now holds temperature steadily, and the door stays shut even on speed bumps.” Another owner warns: “Do not buy cheap alternatives from eBay—they don’t align properly and let cold air escape.”
Several owners also combine latch replacement with thermistor calibration to resolve lingering temperature issues. See our Dometic DM2672 Thermistor Calibration: How to Fix Temperature Issues for that process.
Frequently Asked Questions
1. How often should I replace the door latch on a Dometic DM2672?
There is no scheduled interval, but inspect the latch annually. Replace it if the catch feels loose, the door does not seal firmly, or you notice the door popping open during travel.
2. Can I lubricate the old latch instead of replacing it?
Lubricating a dry catch may provide a temporary fix, but the plastic spring arms eventually lose tension. For reliable long-term use, replacement is recommended.
3. Why does my new latch still not hold the door shut?
Check if the striker plate is correctly aligned. Also verify that the door hinges are not bent or loose. If the fridge cabinet has settled or warped, shimming the striker plate with thin plastic washers may be needed.
4. Does the latch replacement fix temperature fluctuations?
A worn latch can cause small air leaks that lead to temperature instability. However, if the fridge still fluctuates after latche replacement, investigate the thermistor or gas flame. Consult our Dometic DM2672 Ammonia Odor: Diagnosis and Safety Tips for leaking issues.
5. What is the correct part number for the Dometic DM2672 latch kit?
The most common OEM part is 241438872. Always verify with your refrigerator’s serial number plate. Universal kits (like DM2672 UCL) are also available but may require minor trimming.
6. Can a broken latch cause a gas leak?
No—the latch is purely mechanical. However, an unsealed door can allow moisture to enter, which may lead to rust on gas burner components over time. That is not a direct gas risk, but keep the area clean. For general AC maintenance tips, see our How to Maintain Your RV Air Conditioner guide, though that applies to roof AC units, not the fridge.
